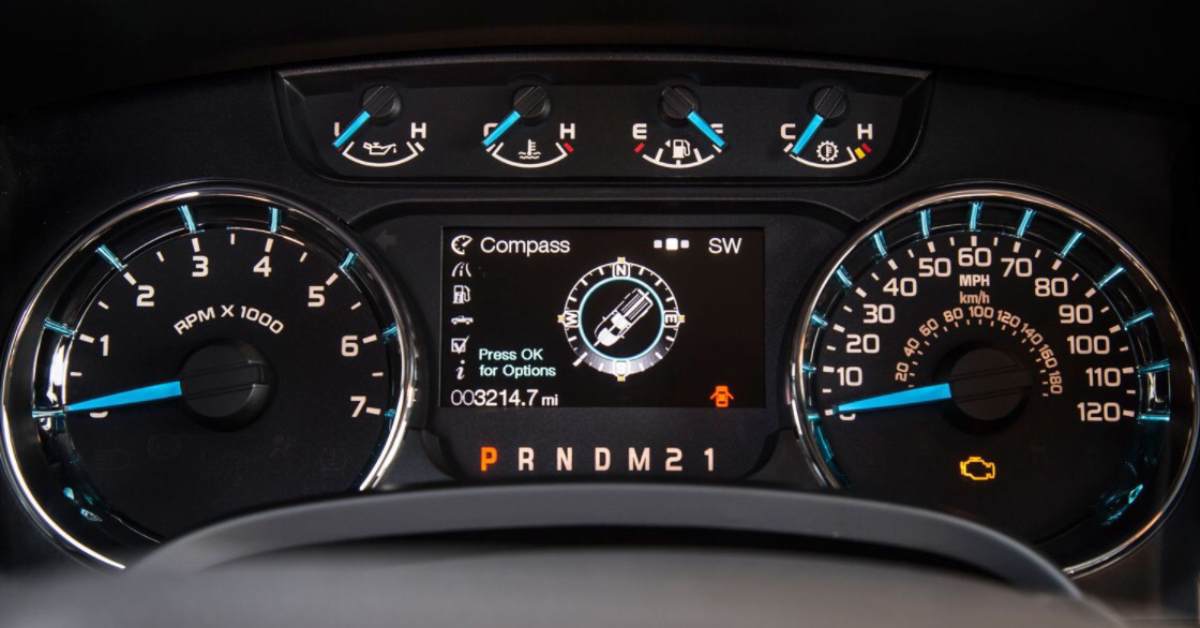

The Ford F150’s digital compass serves as a reliable navigation aid that connects directly to your vehicle’s electrical system. This sophisticated device works by detecting Earth’s magnetic field and translating that information into directional readings displayed on your dashboard.
Understanding how this system operates and what can go wrong will help you maintain accurate navigation capabilities in your truck.
Fix Ford F150 Compass Issues
| Problems | Solutions |
| Calibration issues | Calibrate the compass |
| Variation in Earth’s magnetic field | Restart the truck |
| Loss of navigation | keep map updated |
| Electromagnetic interferences | Limit the use of mobile phones |
| Faulty compass module | Replace the compass module |
| Presence of metal devices | Keep metal devices away |
| Physical damage | Dry water with a hairdryer |
| Natural obstructions | Move away from tall buildings |
| Power supply issues | Inspect the electric system |
| Environmental factors | Maintain interior cabin temperature |
How the Ford F150 Digital Compass Works

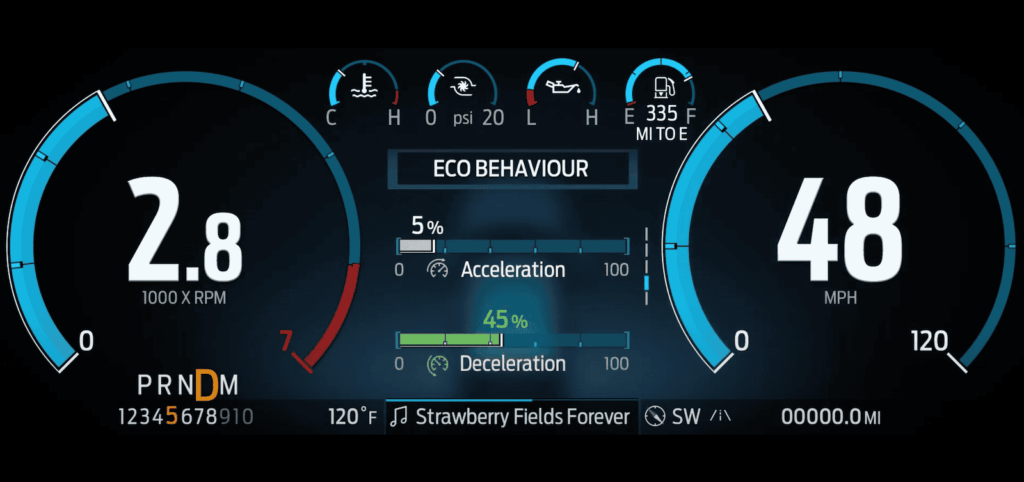

The digital compass in your Ford F150 operates as an integrated component of the vehicle’s navigation system. Unlike traditional mechanical compasses, this electronic version relies on magnetic sensors that detect variations in Earth’s magnetic field. The system processes this magnetic data through your truck’s computer network, displaying real-time directional information on the instrument panel.
The compass receives electrical power from your vehicle’s charging system and communicates with other electronic modules to provide accurate directional guidance. This integration allows the compass to work seamlessly with your truck’s GPS navigation system when equipped, creating a comprehensive positioning solution for drivers.
Common Signs Your Compass Needs Attention

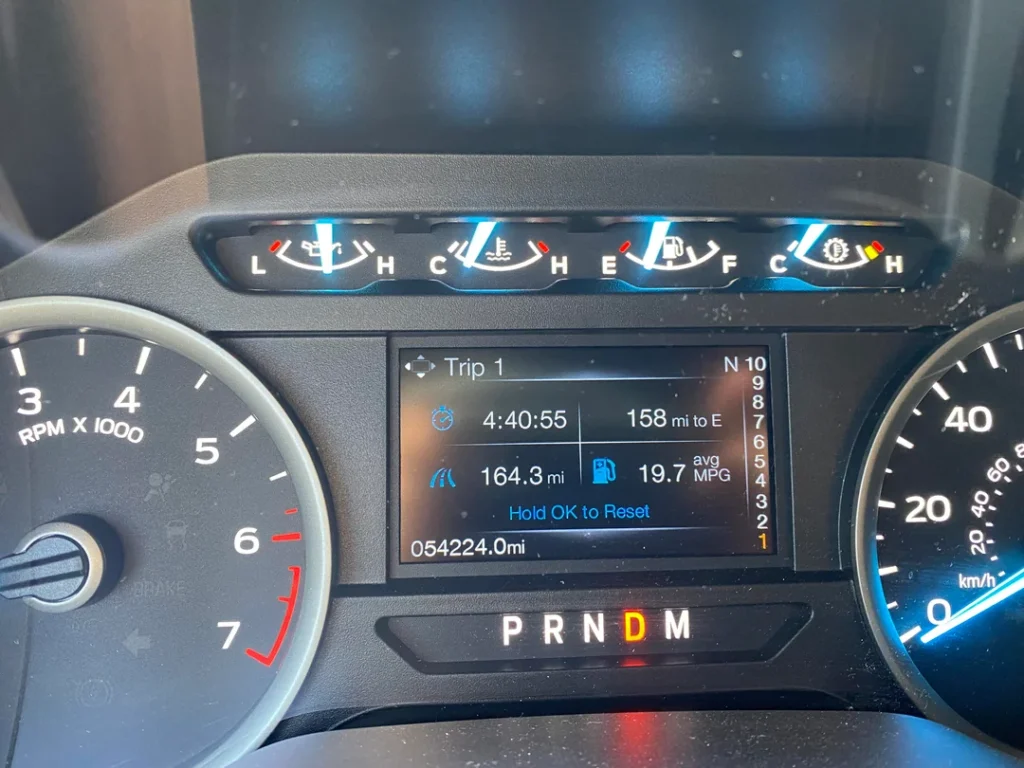

Several symptoms indicate when your Ford F150’s compass requires troubleshooting or maintenance. The most obvious sign occurs when the compass becomes stuck displaying a single direction, typically north, regardless of your actual heading. You might also notice the compass showing erratic readings that change rapidly without corresponding vehicle movement.
Another common indicator involves the compass displaying completely blank or showing error messages on the screen. Some drivers experience intermittent functionality where the compass works correctly in certain locations but fails in others. These symptoms often point to specific underlying causes that require targeted solutions.
Calibration Issues and Solutions
Calibration problems represent the most frequent cause of compass malfunctions in Ford F150 trucks. The compass requires periodic recalibration to maintain accuracy, especially after battery disconnection, software updates, or when driving in areas with different magnetic declination values.
Performing Compass Calibration
The calibration process begins with ensuring your truck sits on level ground away from large metal structures or power lines. Turn off all electronic devices inside the cabin, including mobile phones and tablets, as these can interfere with the calibration process. Close all doors and windows to minimize external electromagnetic interference.
Locate the compass reset button, typically found near the rearview mirror or integrated into the overhead console controls. Press and hold this button until the display shows “CAL” or a similar calibration indicator. Release the button once this message appears on screen.
Drive your truck in a complete circle at a slow speed, maintaining steady steering input. The calibration system requires this circular motion to establish accurate magnetic reference points. Continue driving in circles until the “CAL” message disappears and normal compass operation resumes. This process usually takes two to three complete rotations.
Dealing with Magnetic Field Variations
Earth’s magnetic field experiences natural fluctuations that can affect compass accuracy. These variations occur due to solar activity, geological changes, and regional magnetic anomalies. Unlike mechanical issues, magnetic field variations require different troubleshooting approaches since you cannot directly control these natural phenomena
Addressing Magnetic Interference
When magnetic field variations cause compass problems, restarting your truck’s electrical system often resolves temporary issues. Turn off the engine and disconnect the negative battery terminal for approximately five minutes. This process allows the compass module to reset its magnetic reference points when you reconnect the battery and restart the engine.
If problems persist, consider whether you’ve recently traveled to a different geographic region. Magnetic declination varies significantly across North America, and your compass may need recalibration to account for these regional differences.

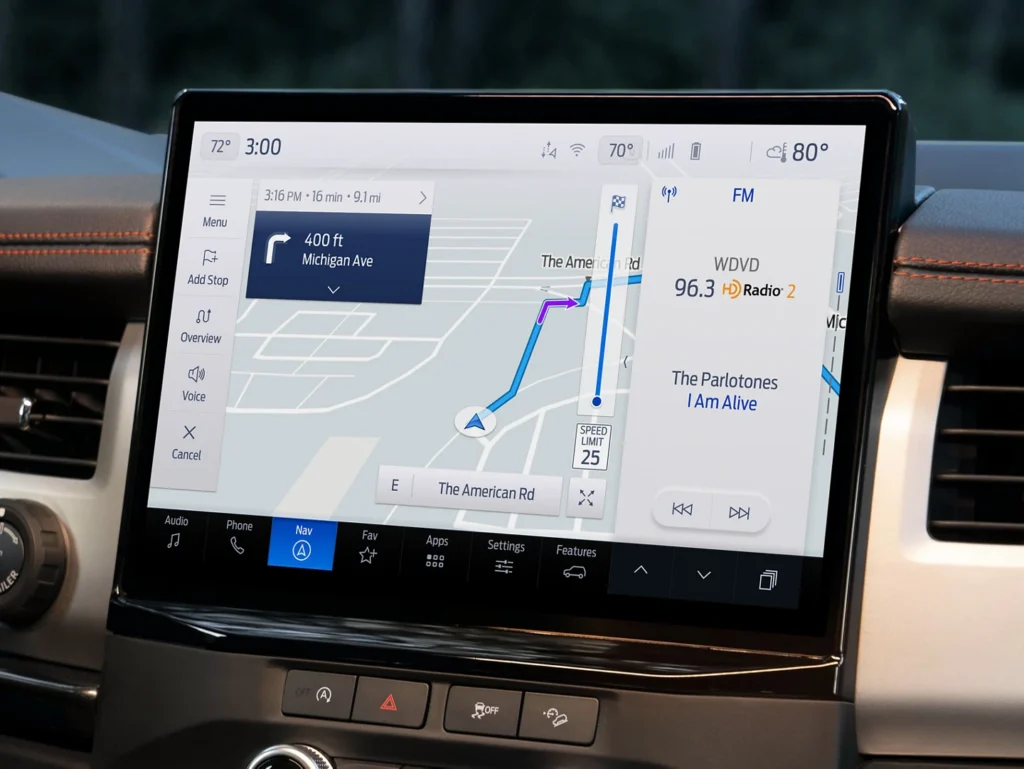

Navigation System Integration Problems
Modern Ford F150 compass systems integrate closely with GPS navigation features. When navigation systems experience software glitches or outdated map data, compass functionality can suffer accordingly. Understanding this relationship helps identify when compass problems stem from navigation system issues rather than hardware malfunctions.
Updating Navigation Software
Regular navigation system updates ensure optimal compass performance. Access your truck’s infotainment system and check for available software updates through the settings menu. If your truck includes connected services, these updates may download automatically when parked with Wi-Fi connectivity.
Outdated map data can cause compass systems to display incorrect readings or become stuck in a single direction. Schedule regular updates through Ford’s official channels or authorized service centers to maintain current navigation databases.
Electromagnetic Interference Solutions

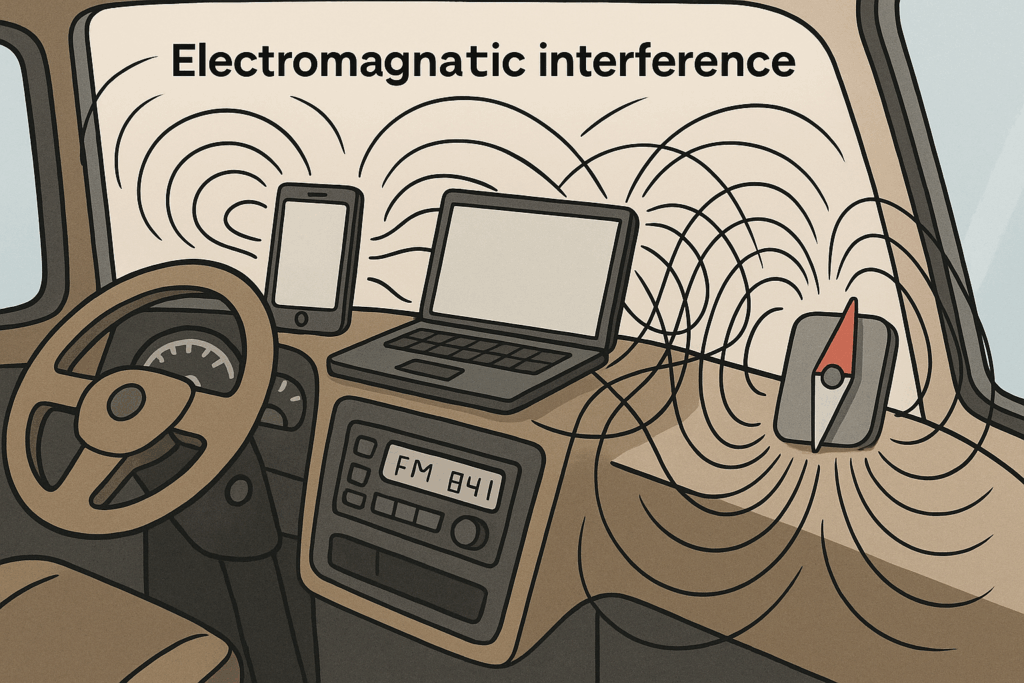

Electronic devices and external sources generate electromagnetic fields that can disrupt compass accuracy. Mobile phones, laptops, and aftermarket electronic accessories create interference patterns that confuse magnetic sensors. Understanding common interference sources helps you identify and eliminate these problems.
Minimizing Electronic Interference
Create an interference-free environment by turning off unnecessary electronic devices when compass accuracy becomes critical. Remove or relocate metallic phone mounts, tablets, and other devices positioned near the compass sensor location. Many compass sensors mount near the rearview mirror area, making this region particularly sensitive to interference.
External interference sources include high-voltage power lines, radio transmission towers, and industrial facilities. When compass problems occur in specific locations, consider whether nearby infrastructure might generate electromagnetic interference. Moving away from these sources typically restores normal compass operation.
Hardware Component Failures
The compass module itself can fail due to age-related wear, water damage, or electrical faults. These small sensors contain delicate electronic components that deteriorate over time or suffer damage from harsh operating conditions. Identifying hardware failures requires systematic diagnostic approaches.
Diagnosing Module Problems
Hardware diagnosis begins with visual inspection of the compass module and related wiring. Look for signs of water intrusion, corrosion, or physical damage around the sensor mounting location. Check electrical connections for looseness or corrosion that might interrupt the power supply or signal transmission.
Professional diagnostic equipment can test the compass module functionality and communication with other vehicle systems. If basic troubleshooting steps fail to resolve compass problems, consider having the module tested by qualified technicians who can determine whether replacement becomes necessary.
Physical and Environmental Factors
Environmental conditions significantly impact compass performance in Ford F150 trucks. Extreme temperatures, humidity levels, and physical damage from accidents can affect compass accuracy and reliability. Understanding these environmental influences helps prevent problems and guides appropriate maintenance practices.
Temperature and Moisture Management
Electronic compass systems operate within specific temperature ranges for optimal accuracy. Extreme heat or cold can cause temporary malfunctions or permanent damage to sensitive components. Use your truck’s climate control system to maintain reasonable interior temperatures, especially during extreme weather conditions.
Water intrusion poses serious risks to computer electronics. If water enters the compass module area through leaks or spills, immediate drying becomes essential. Use compressed air or hair dryers on low heat settings to remove moisture before permanent damage occurs.
Preventive Maintenance Strategies
Regular maintenance prevents many compass problems before they develop into serious malfunctions. Establishing routine maintenance schedules and following best practices extends the compass system’s life and maintains reliable performance throughout your truck’s service life.
Establishing Maintenance Routines
Schedule compass calibration every six months or after major electrical work on your vehicle. Keep navigation software updated through regular downloads and installations. Monitor compass performance during routine driving and address minor issues before they become major problems.
Document compass calibration dates and any performance issues in your vehicle maintenance records. This information helps identify patterns and assists technicians when professional service becomes necessary.
Professional Service Recommendations
Complex compass problems may require professional diagnosis and repair. Knowing when to seek professional help versus attempting self-service saves time and prevents additional damage to expensive electronic systems.
Contact Ford-certified technicians when basic troubleshooting fails to resolve compass issues. Professional service becomes essential for module replacement, advanced software diagnostics, or integration problems with other vehicle systems. Authorized service centers maintain current technical information and proper diagnostic equipment for accurate problem identification and repair.
Your Ford F150’s digital compass provides valuable navigation assistance when properly maintained and calibrated. Understanding common problems and their solutions enables you to address minor issues independently while recognizing when professional service becomes necessary. Regular maintenance and awareness of environmental factors ensure reliable compass performance throughout your truck’s operational life.
Remember that compass systems integrate with multiple vehicle systems, making proper diagnosis essential for effective repairs. When in doubt, consult qualified technicians who can provide accurate assessments and appropriate solutions for your specific compass problems.
